Shunhao Image gallery of flanges

Examples of flanges supplied by Shunhao:

<<

>>

Shunhao SORF B16.

Stainless steel material: AISI-304L

1

Shunhao SORF B16.

Stainless steel material: AISI-304L
2

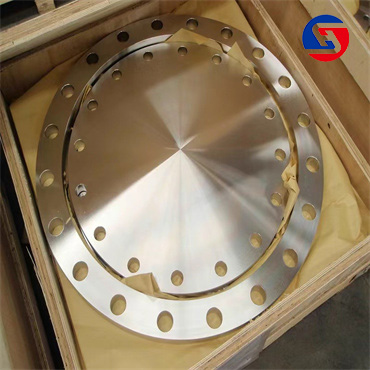

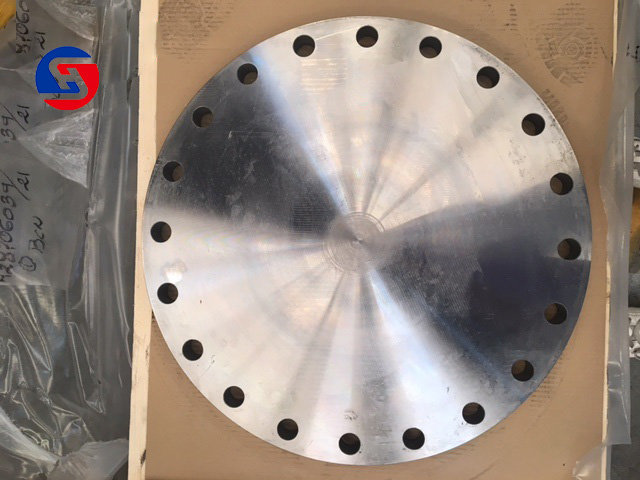

Shunhao Blind Flange EN-1092-1 type 5

DN400 PN16
Material: stainless steel AISI-316L
3

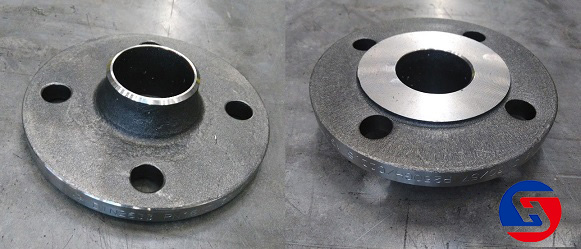

ShunhaoFlange EN-1092-1 type 05

DN80 PN16 type A
Material: P250GH carbon steel forged, machined on one side
4

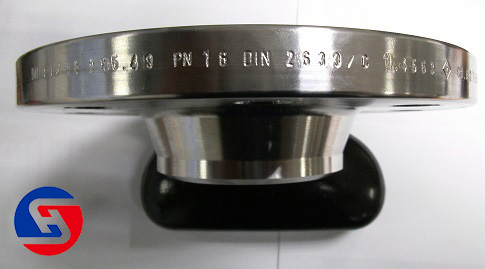

Shunhao Flange with collar DIN 2633

DN80 PN16
Material: 1.4563 (Alloy 28)
5

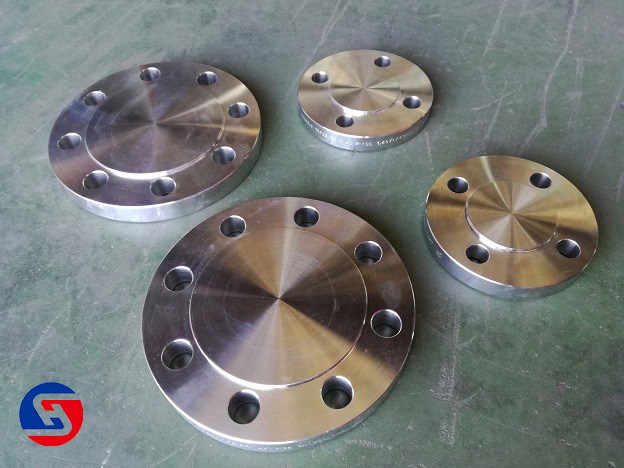

Blind Flange EN-1092-1 type 5

DN40 PN100 and DN100 PN63
Material: stainless steel AISI-316Ti
6

Shunhao Welding neck DIN-2633

DN50 PN16
Material: carbon steel P250GH forged, partial machining
7

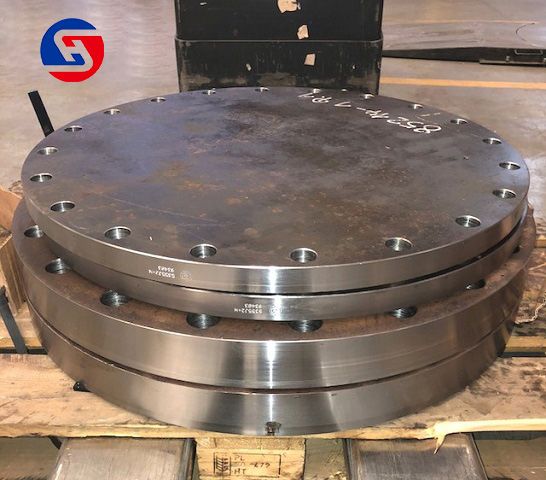

ShunHao Blind EN-1092-1 typ 05

DN600 PN25 PN10
Material: carbon steel S355J2N
8

ShunHao Welding neck B16.5 16in

(DN400) class 150
Stainless steel material: AISI-316L
9

Shunhao Hubbed Slip-on EN-1092-1 type 12

DN300 PN10
Material: stainless carbon steel forged, machined on one side
10

ShunHao Flat flange EN-1092-1 type 1

DN400 PN25
Material: stainless steel AISI-316Ti
11

Shunhao Flange ASME /ANSI B16.5

3in (DN80) class 150
Material: carbon steel A-350 LF2
12

Shunhao Welding neck flange

DN500 PN40
Material: stainless steel AISI-316L
13

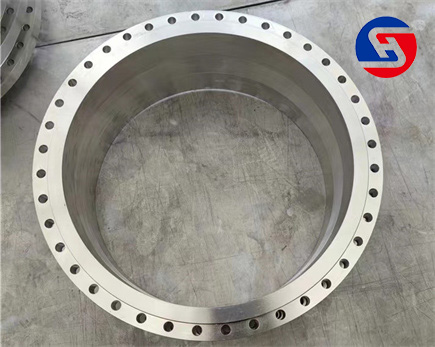

Shunhao Flange with collar EN-1092-1 type 11

DN400 PN25
Material: stainless steel AISI-316L
14

Shunhao Flange DIN 2642

DN125 PN16
Material: Aluminium
15

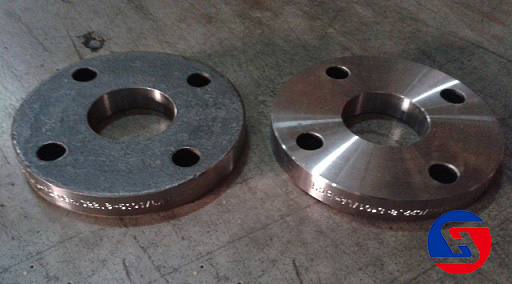

Shunhao Flat flange EN-1092-1 type 01

DN40 PN40 type A
Material: P250GH carbon steel forged, machined on one side
16

Shunhao Blind flange EN-1092-1 type 05

DN500 PN16 type A
Material: carbon steel P250GH forged
17

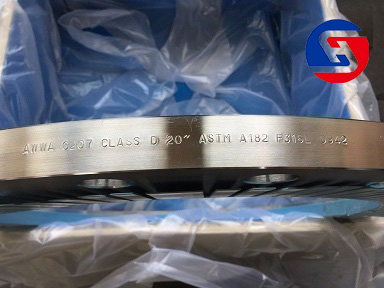

Shunhao Ring flange AWWA C207

20" (DN500) class D
Material: stainless steel AISI-316L, forged
18

Shunhao Custom welded neck flanges

DN40 SCH40S
Material: stainless steel AISI-316L
19

Shunhao Shunhao Ring flange AWWA C207

26" (DN650) class D
Material: stainless steel AISI-316L, forged
20

Shunhao Butt welded flange B16.5

Material: A105
21

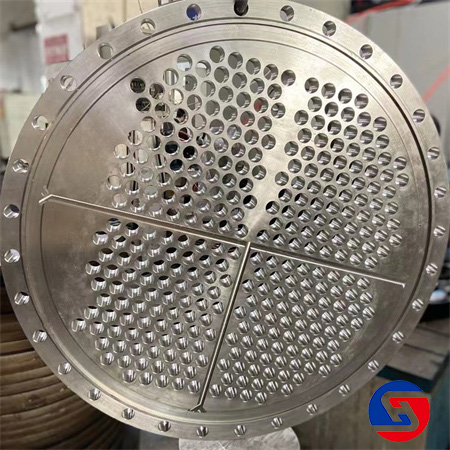

Shunhao F53 double phase stainless steel tubesheet flange

DN500 PN10
Material: F53 duplex stainless steel
22

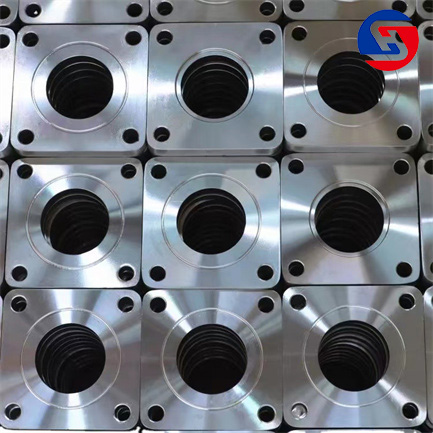

Shunhao Non-standard custom square flange

Material: steel material: AISI-304L
23

Shunhao Special customized

High pressure flanges are made according to the drawing Material: carbon steel A-105, forged
24

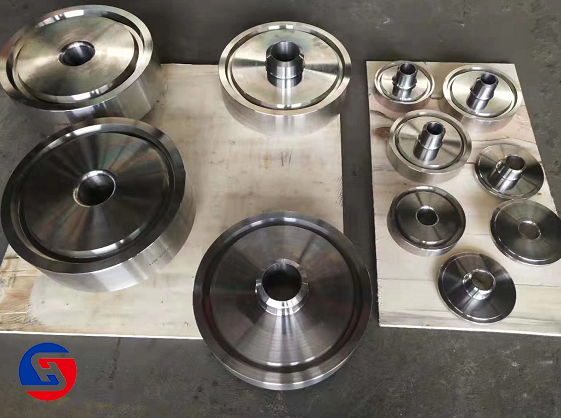

Shunhao Non-standard precision flange customization

Material: stainless steel AISI-316L
25

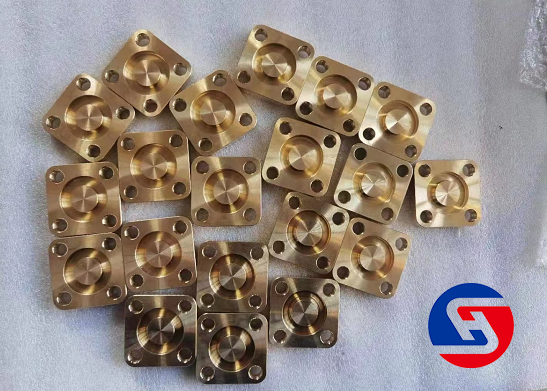

Shunhao Special custom square flange

Material: copper
